Seven Wind Direction Sensor


Product Features

Wind Direction Sensor

The Wind Direction Sensor is a professional meteorological device designed to measure horizontal wind direction. It uses a Hall Effect Position Sensor to detect changes in wind direction and converts them into a signal. The measured data is transmitted as an analog output signal (0-3.3V). This model can connect to SEVEN’s Irradiance Sensor, Sensor Box, and Compact Weather Station models via a pin connector.

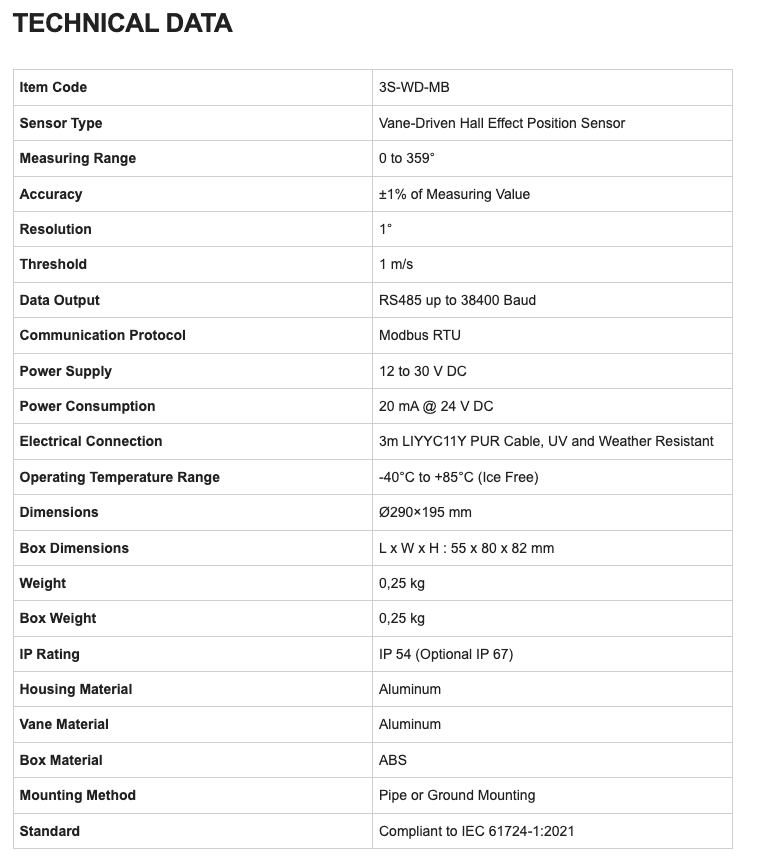

Wind Direction Sensor With Modbus Output

The Wind Direction Sensor is is a professional meteorological sensor used to measure horizontal wind direction. It consists of two parts, the body, and the vane. It measures the Wind Direction in degree (°). The Wind Direction Sensor can be used for many reasons, such as the interpretation of the values of modules temperature, as a strong wind blowing from the North, for example, can cool the panel. It is also used is to document warranty claims related to the damage caused by the wind. The Wind Direction Sensor with Modbus Output is compatible with all Dataloggers supporting Modbus RTU Protocol. It is supplied with mounting facility and cable.

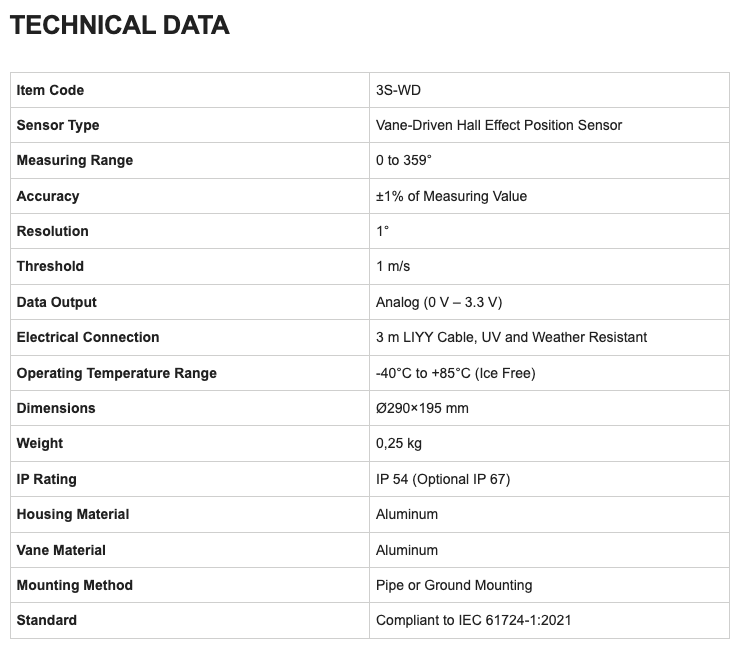

Wind Direction Sensor With Analog Output

The Wind Direction Sensor is is a professional meteorological sensor used to measure horizontal wind direction. It consists of two parts, the body, and the vane. It measures the Wind Direction in degree (°). The Wind Direction Sensor can be used for many reasons, such as the interpretation of the values of modules temperature, as a strong wind blowing from the North, for example, can cool the panel. It is also used is to document warranty claims related to the damage caused by the wind. The Wind Direction Sensor with Analog Output is compatible with all Dataloggers, Gateways, and PLCs having Analog input port. It is supplied with mounting facility and cable.
